Large Base 3D Camera

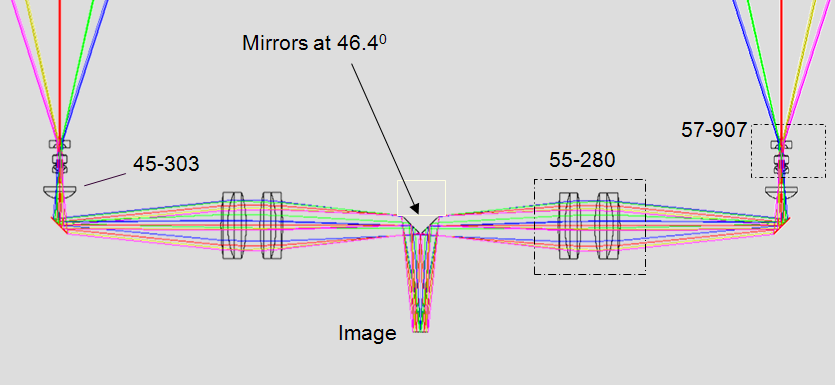

Single sensor, large base 3D camera using Edmund off the shelf components
| Sensor | .5" |
| Base | 267.2mm |
| Magnification | -1.33 |
| Effective F/6 at image. | |
| Gap at sensor < .25 mm | |
Single sensor, large base 3D camera using Edmund off the shelf components
| Sensor | .5" |
| Base | 267.2mm |
| Magnification | -1.33 |
| Effective F/6 at image. | |
| Gap at sensor < .25 mm | |
